Air Cooled Heat Exchanger Design is a program designed to demonstrate the thermal design and sizing calculations of Air cooled heat exchangers. For a heat exchanger thermal design calculations spreadsheet the heat exchanger equation can be used to calculate the required heat exchanger area for known or estimated values of the other three parameters Q U and ΔT lm. Air cooled heat exchanger design calculation xls.
Air Cooled Heat Exchanger Design Calculation Xls, It can calculate the required number of Bays Fans Tubes Tube rows and Tube bundles the Outlet Air Temperature using iteration or incrementing techniques. Cooling tower calculations xls Heat Exchangers UAE. The Air Fin Coolers are basically designed with multiple rows of finned tubes in a series of surface and required numbers of fans are used to move the low temperature atmospheric ambient air over the finned tube coil surface in order to cool the hotter fluid media. Description of Heat Recovery Air Handling Units Calculation.
Air Cooled Heat Exchanger Design 2 0 0 1 Free Download From air-cooled-heat-exchanger-design.soft112.com
PROCESS DESIGN OF AIR COOLED HEAT EXCHANGERS AIR COOLERS PROJECT STANDARDS AND SPECIFICATIONS Page 7 of 19 Rev. Download the Excel spreadsheet templates in this article to make preliminary heat exchanger design calculations. Air flowrate in Actual Cubic Feet per Minute. 27 2001 ASHRAE Fundamental Handbook.
Weather and climatic information available Table 1A 1B Chp.
Read another article:
Air Coolers shall be designed for a temperature at least. It can calculate the required number of Bays Fans Tubes Tube rows and Tube bundles the Outlet Air Temperature using iteration or incrementing techniques. CheSheets provide Chemical Engineering Spreadsheets developed in Google Sheets - a web based spreadsheet program. It can calculate the required number of Bays Fans Tubes Tube rows and Tube bundles the Outlet Air Temperature using iteration or incrementing techniques. BHP ΔP Total ACFM 6356 η Fan.
Source: air-cooled-heat-exchanger-design.soft112.com
Air cooled heat exchanger sizing Software ACHex The software will design horizontal induced draft or forced draft units for liquid and gas services and will produce a three page summary of all results and a basic drawing representation. Spreadsheet for Shortcut Air Cooled Heat Exchanger Design. Cooling tower calculations xls Heat Exchangers UAE. Residential Heating and Cooling Load Calculation 2001 ASHRAE Fundamentals Handbook Excel Sheet HVAC Heat Recovery Air Handling Units Calculation Excel Sheet HVAC Electrical Spreadsheet version for the ACCA Manual D 3rd Edition. Air Cooled Heat Exchanger Design 2 0 0 1 Free Download.
Source: enggcyclopedia.com
Calculation for double pipe exchanger air cooled exchanger lmtd calculation lmtd correction. Thus optimization with respect to outlet air temperature or equivalently air flow rate is an important aspect of air-cooled heat-exchanger design. SHR Sensible LoadTotal Load Use. Calculate the required heat transfer area based on values needed. Heat Exchanger Design Software Enggcyclopedia.
Source: in.pinterest.com
Air Cooled Heat Exchanger Design is a program designed to demonstrate the thermal design and sizing calculations of Air cooled heat exchangers. CheSheets provide Chemical Engineering Spreadsheets developed in Google Sheets - a web based spreadsheet program. In the example data for the city of Bursa has been used. 2- The data used corresponds to location in Turkey. Pin By Colinl On Passive House Design Passive House Design Roof Ceiling Passive House.
Source: pinterest.com
An air-cooled heat exchanger can be as small as your car radiator or large enough to. Each of those parameters will be discussed briefly in. Break power for fan is calculated as following. Calculation for double pipe exchanger air cooled exchanger lmtd calculation lmtd correction. Pin On Psychometric.
Source: pinterest.com
ΔP a 00047NrFV100 18 for 10 fins in 2375 inch spacing ΔP a 00044NrFV100 18 for 8 fins in 2375 inch spacing. Air flowrate in Actual Cubic Feet per Minute. Spreadsheet for Shortcut Air Cooled Heat Exchanger Design. BHP ΔP Total ACFM 6356 η Fan. Download A Collection Of Calculation Excel Sheets For Booster Pump Design Selecting The Booster Pump Pressure And Flow Water Well House Designer Pumps Booster.
Source: brighthubengineering.com
Air Cooled Heat Exchanger Sizing does preliminary estimation of Finned Area Plot Size Total Fan Power and Air Outlet Temperature CheCalc Chemical engineering calculations to assist process plant operation and maintenance engineers. Cooling tower calculations xls Heat Exchangers UAE. BHP ΔP Total ACFM 6356 η Fan. Download the Excel spreadsheet templates in this article to make preliminary heat exchanger design calculations. Heat Exchanger Calculations And Design With Excel Spreadsheet Templates Bright Hub Engineering.
Source: semanticscholar.org
Government regulations and environmental concerns. ΔP a 00047NrFV100 18 for 10 fins in 2375 inch spacing ΔP a 00044NrFV100 18 for 8 fins in 2375 inch spacing. 27 2001 ASHRAE Fundamental Handbook. Air Cooled Heat Exchanger Design is a program designed to demonstrate the thermal design and sizing calculations of Air cooled heat exchangers. Simple Design Tools For Earth Air Heat Exchangers Semantic Scholar.
Source: heat-exchangers-software.com
Power BHP η Motor. Cair Ccold Q t Q t 2-t 1 air-side heat capacity rate BtuhrF 108 FV L W Ctube Chot Q T Q T 1-T 2 tube-side heat capacity rate Btu hrF. Excel Sheet Heating HVAC Load Estimation. The pressure drop through the air side of the air cooled heat exchanger can be calculated the following way. Air Cooled Heat Exchanger Design Software Perform Thermal Calculations.
Source: pinterest.com
Cair Ccold Q t Q t 2-t 1 air-side heat capacity rate BtuhrF 108 FV L W Ctube Chot Q T Q T 1-T 2 tube-side heat capacity rate Btu hrF. Air Cooled Heat Exchanger Sizing does preliminary estimation of Finned Area Plot Size Total Fan Power and Air Outlet Temperature CheCalc Chemical engineering calculations to assist process plant operation and maintenance engineers. The Air Fin Coolers are basically designed with multiple rows of finned tubes in a series of surface and required numbers of fans are used to move the low temperature atmospheric ambient air over the finned tube coil surface in order to cool the hotter fluid media. Air Cooled Heat Exchanger sizing requires tedious work and is time consuming due to many trial and error calculations to balance air and liquid heat transfer properties and temperature requirements. Pin On A New Matlab Simulink Model Has Arrived Check It Now.
Source: pinterest.com
Thus optimization with respect to outlet air temperature or equivalently air flow rate is an important aspect of air-cooled heat-exchanger design. The Air Fin Coolers are basically designed with multiple rows of finned tubes in a series of surface and required numbers of fans are used to move the low temperature atmospheric ambient air over the finned tube coil surface in order to cool the hotter fluid media. Air Coolers shall be designed for a temperature at least. Air Cooled Heat Exchanger Design is a program designed to demonstrate the thermal design and sizing calculations of Air cooled heat exchangers. Cold Room Design Calculations Xls Room Air Conditioning Refrigeration And Air Conditioning Room Air Conditioner.
Source: marblspecialist.web.fc2.com
2- The data used corresponds to location in Turkey. Calculation for double pipe exchanger air cooled exchanger lmtd calculation lmtd correction. Description of Heat Recovery Air Handling Units Calculation. Cooling tower calculations xls Heat Exchangers UAE. Condenser Design Calculation Excel.
Source: air-cooled-heat-exchanger-design.soft112.com
It can calculate the required number of Bays Fans Tubes Tube rows and Tube bundles the Outlet Air Temperature using iteration or incrementing techniques. Air Cooled Heat Exchanger Design is a program designed to demonstrate the thermal design and sizing calculations of Air cooled heat exchangers. Air Cooled Heat Exchanger Design is a program designed to demonstrate the thermal design and sizing calculations of Air cooled heat exchangers. It can calculate the required number of Bays Fans Tubes Tube rows and Tube bundles the Outlet Air Temperature using iteration or incrementing techniques. Air Cooled Heat Exchanger Design 2 0 0 1 Free Download.
Source: pinterest.com
Residential Heating and Cooling Load Calculation 2001 ASHRAE Fundamentals Handbook Excel Sheet HVAC Heat Recovery Air Handling Units Calculation Excel Sheet HVAC Electrical Spreadsheet version for the ACCA Manual D 3rd Edition. For a heat exchanger thermal design calculations spreadsheet the heat exchanger equation can be used to calculate the required heat exchanger area for known or estimated values of the other three parameters Q U and ΔT lm. Cross Flow Cooling Towers. Air Cooled Heat Exchanger Design is a program designed to demonstrate the thermal design and sizing calculations of Air cooled heat exchangers. Pin On Psychometric.
Source: brighthubengineering.com

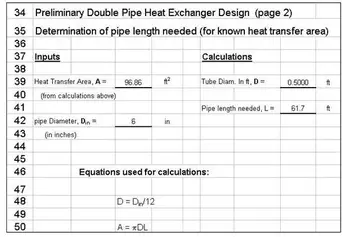

Download the Excel spreadsheet templates in this article to make preliminary heat exchanger design calculations. Example 10-1 Procedure for determining a rough preliminary heat transfer surface area required plot space and fan power for an air-cooled exchanger Required data Fluid Process Cooling Water Heat Load Q Temperature In degF Temperature out Ambient temperature Fouling factor hr-ft2-degFBtu Heat release curve Linear Cp air Btulb-degF Forced draft 2 fans. CheSheets provide Chemical Engineering Spreadsheets developed in Google Sheets - a web based spreadsheet program. Air Cooled Heat Exchanger Design is a program designed to demonstrate the thermal design and sizing calculations of Air cooled heat exchangers. Heat Exchanger Calculations And Design With Excel Spreadsheet Templates Bright Hub Engineering.
Source: pinterest.com
It can calculate the required number of Bays Fans Tubes Tube rows and Tube bundles the Outlet Air Temperature using iteration or incrementing techniques. Air Cooled Heat Exchanger Sizing does preliminary estimation of Finned Area Plot Size Total Fan Power and Air Outlet Temperature CheCalc Chemical engineering calculations to assist process plant operation and maintenance engineers. Download the Excel spreadsheet templates in this article to make preliminary heat exchanger design calculations. Air flowrate in Actual Cubic Feet per Minute. Heatexchangerpart4 18288 Gif 522 367 Autocad Heat Exchanger Blocks.
